CURING
OUR CURING SOLUTIONS
UVLED
ADVANCED ULTRAVIOLET CURING SYSTEM
The UV Irradiation Source has world best efficiency using high power UV LED panel. It is available either as UV A single frequency or as multi-frequency spectrum from 265 nm toward 405 nm.
Curing in seconds
- Lowest cost of ownership available today.
- Efficient curing: approx. 10 seconds.
- Mercury-free UV curing process solution.
- Super-fast curing approx. 10 seconds.
- Lamp lifespan: approx. 20.000 hours.
- Energy efficient / Eco-friendly.
- No infrared radiation
- Full board area covered within one shot -even coverage.
- No additional variables, no reflector, longer lamp lifetime.
CURING PLATFORMS
LITE UVLED
[SNAPCURE]
SMART INFINITY
[SNAPCURE][SNAPVISION] [SNAPFLIP]
SEMINFINITY
[SNAPVISION][SNAPCURE]
INFRARED
Maximum productivity and performance
Lean and efficient process for curing various materials using a combination of IR and convection heat sources, featuring either traditional IR emitters or MSTECH EUROPE’s patented technology of closed-loop IR LED radiation. This addresses the specific needs of sensitive preheat processes, such as those required before underfill dispensing.
Advantages at a glance
- Energy efficient.
- Short wave IR heat source for optimized productivity and collateral convection for profile stability.
INFRARED PLATFORMS
LITE IR
LITE 2 - LITE 3 - LITE IR 4
THERMAL CONVECTION
CONVECTION THERMAL SYSTEM
The MSTECH EUROPE VERTICAL CAROUSEL or VERTICAL FIFO solution replaces a comparable 20 to 30 meter long horizontal furnace with an overall system length of less than 2.5 meters, thereby saving valuable facility space. The heating system offers both a significant gain in temperature stabilization and reduced energy consumption, while still guaranteeing total reproducibility of the temperature within a multi-zone concept.
Our advanced conveyor system can handle sizes ranging from small form factors up to 750 x 500 mm.
Advantages at a glance
- Improving temperature uniformity.
- High thermal efficiency and uniformity.
- Energy efficient.
- Space-efficient.
- Product form factor versatile.
THERMAL CONVECTION PLATFORMS
CLASSIC OVEN

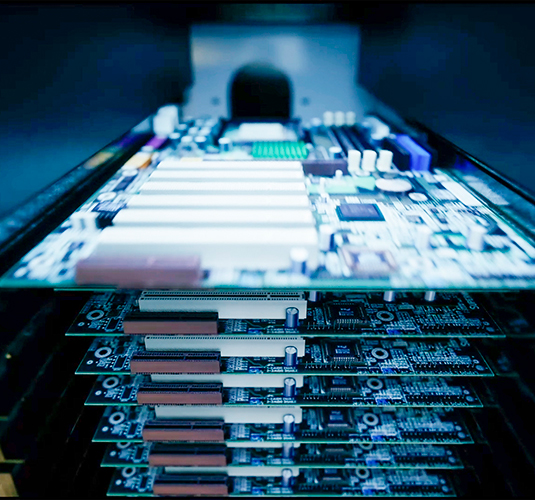

VERTICAL FIFO
CLASSIC OVEN
VERTICAL CAROUSEL
