Powerful heating way and thermal convection
The CLASSIC’S OVEN IR-10 delivers excellent temperature distribution and a stable heating process thanks to its unique and careful design. Its thermal convection ensures uniformity, energy savings, and optimal welding performance.
SOLUTIONS
Reflow oven convection with 10 heating zones
Unique concept
CONFIGURATION
- PCB max. width: 50-460 mm.
- Component clearance +/- 30 mm.
- Preheating, soldering and cooling zones.
- Internal profiler: KIC.
- Heating zones lenght: 3892 mm.
- Heating zones quantity: Top 10, bottom 10.
- Cooling zones: 3 top, 3 bottom.
- Warm up time approx.: 30 minutes.
PRODUCTIVITY
- Enhancing temperature uniformity.
TRACEABILITY (SMARTBOX OPTION)
- Process tracker.
- Live process parameters log.
- Embedded trend analysis.
OPTIMIZATION
- Energy efficient.
Features
- PCB size: 10 heating zones + cooling.
- High-quality components.
- Central support system: Plate holder (CBS optional included).
- Nitrogen: Ready to work with nitrogen.
- Internal profiler: KIC.
- Heating zones length: 3.892 mm.
- Chain dimension: 5 mm (optional 3 and 7 mm).
- Conveyor: Capable of soldering double-sided PCB boards and linking with other SMT equipment (SMEMA).
- Security: Alarm, drop board, and block board detection functions.

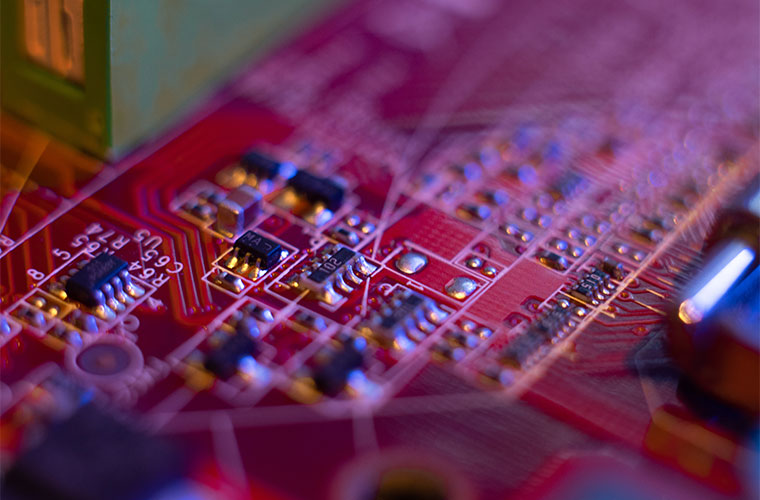

Application
Preheat and cure of underfill, potting, glue, corner bonding, thermal paste, gap filler, coating and ink, etc.
