CURING
High efficiency environmentally friendly alternative to mercury lamps.
BENEFITS
WORLD’s BEST EFFICIENCY
Curing side top or/and bottom.
Curing distance: up to 150 mm.
Super-fast curing approx. 10 seconds.
Efficient impingement lamp cooling system.
No warmup required.
Lamp lifespan: approx. 20.000 hours equivalent to 1.000.000 production hours.
Patented curing technology.
OPTIONS
MULTI-WAVELENGTH OPTIONS
365 nm / 385 nm / 395 nm / 405 nm:
Mercury alternative multi-wavelength:
UVLED Lamps: 255 nm -> 805 nm.
Patented combo wavelength management.
Patented secondary parameter process management.
Active radiation panel:
250×400 mm / 500×400 mm / 500×800 mm.
APPLICATIONS
Polymerization of a wide range of UV-curable materials, including conductive, structural bonding, and dielectric materials, coatings and inks.

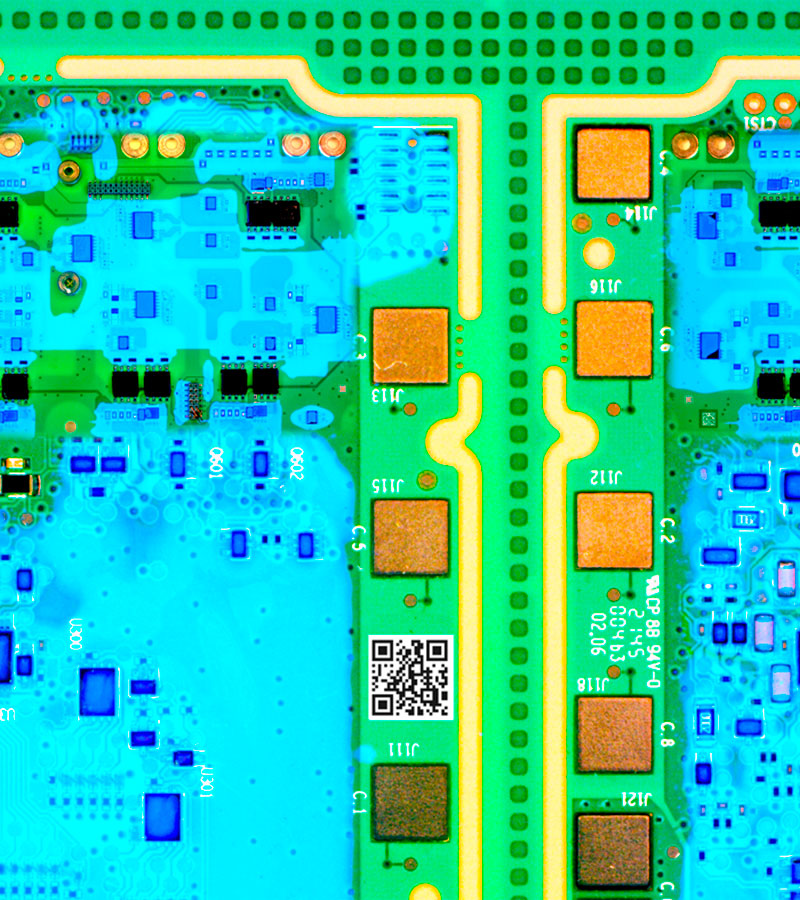

INSPECTION
Multi-purpose vision engine.
Ultra-high speed Inspection.
On-demand image analysis.
WORLD’S BEST PRODUCTIVITY
Intuitive programming UI.
Complete inspection time below than 4 sec.
Thickness measurement.
Ultra-thin coating compatible.
FOV ø: up to 600×500 mm.
Light source: multi-LED illumination.
No periodical calibration of camera needs.
AI based diagnostic.
Proactive analysis engine.
Industry 4.0 MES/FIS and Data sharing.
OPTIONS
User friendly repair station.
Offline programming.
Thickness trend measurement IPC compliant.
Ultra-high resolution: 12 um.
APPLICATIONS
Underfill, potting, glue, corner bonding, thermal paste, gap filler, coating, nano coating, screw, top THT and bottom solder joint, optical bonding, latex, wax, foreign particles, datamatrix, labels, OCR, QR and more.
TRACEABILITY

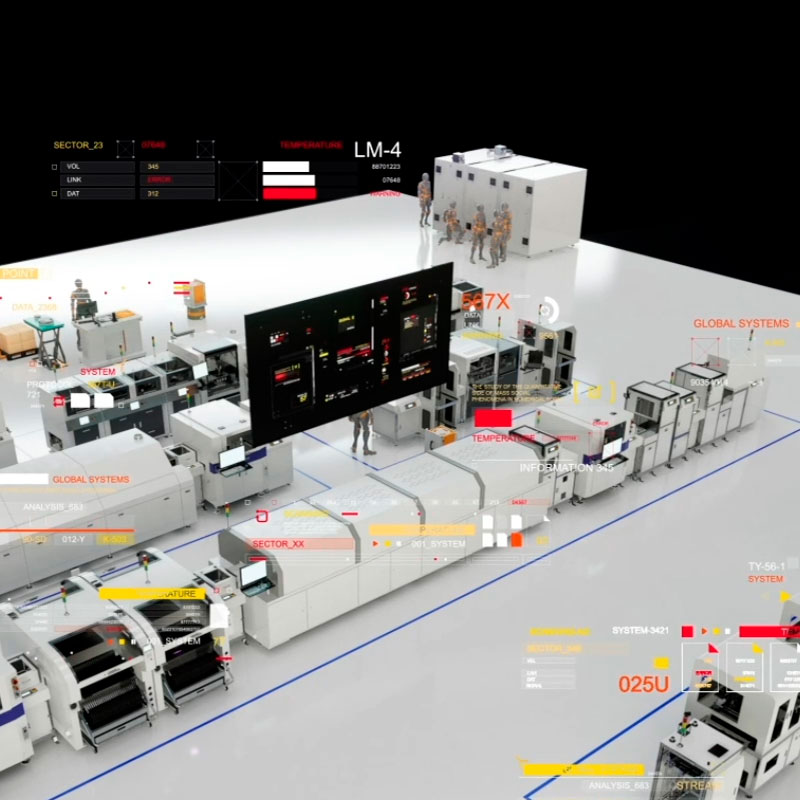

Our SMARTBOX technology presents a modular traceability concept that can be integrated into any production environment. The software organizes the connection between production resource management and the process modules and parameters. SMARTBOX offers visualization of complex production lines, including KPI display, centralized control of connected installations, intelligent process locking, and a central traceability data hub.
SMARTBOX represents modular management for any production line with equipment from different manufacturers. Its standardized interfaces allow for customized data flow exchange with almost any system. Expansion modules communicate with client-specific MES/FIS systems, implementing traceability for components and auxiliary materials in production.
SMART DATA MANAGEMENT AND PROCESSING FOR INDUSTRY 4.0
- Process-based FMEA trend analysis.
- Process Tracking.
- Monitoring and control.
- Connectivity.
- Sensor technology.
- Data management.
- Local KPI display.Local / Remote data display.
- Local / Remote data processing.
- Process data consolidation.
- Multi-Protocol capability.
- Additional protocols on demand.
Communication with your system (EMS):
Protocols include IPC UAC, ITAC, SECS/GEM, Opcon, FlexFlow, and more. Specific development available on request.
